型號(hào)Model NO: |
HG2Z0414FC-MP | |
生產(chǎn)廠家Factory: |
日本CBC/ Computar | |
規(guī)格Format: |
1/2" | |
接口方式Mount: |
C | |
焦距Focal Length(mm): |
4-8 | |
光圈Aperture(F): |
1.4-360 | |
視角Angle of View(水平HOR)°: |
90.4-47.0 | |
最近物像距離M.O.D(M): |
0.5 | |
有效口徑Effective Aperture: |
前Front(φmm):22.2 |
后Rear(φmm):10.7 |
前置濾光鏡螺紋Front Filter Thread(φM×P=): |
- | |
外形尺寸Dimensions(φ×D, φ×H×D , W×H×D mm): |
38.5×48×48.8 | |
重量Weight (g): |
75 |

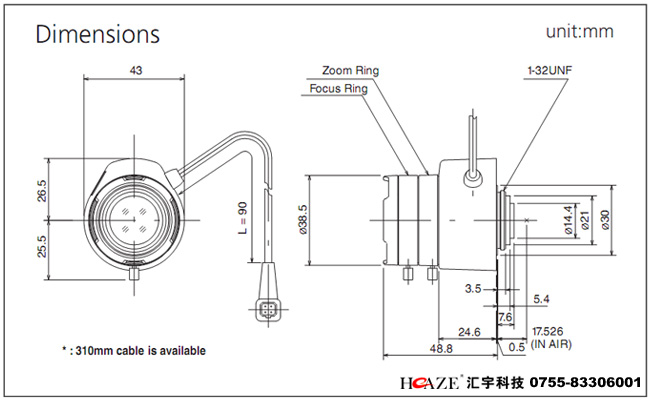

產(chǎn)品圖紙
|
|
||
