型號Model NO: |
TG2625AFCS-P | |
生產(chǎn)廠家Factory: |
日本CBC/ Computar | |
規(guī)格Format: |
1/3" | |
接口方式Mount: |
CS | |
焦距Focal Length(mm): |
2.6 | |
光圈Aperture(F): |
2.5 | |
視角Angle of View(水平HOR)°: |
83.2 | |
最近物像距離M.O.D(M): |
0.2 | |
有效口徑Effective Aperture: |
前Front(φmm):4.8 |
后Rear(φmm):11.5 |
前置濾光鏡螺紋Front Filter Thread(φM×P=): |
- | |
外形尺寸Dimensions(φ×D, φ×H×D , W×H×D mm): |
34.5×39.8×73.5 | |
重量Weight (g): |
85 |

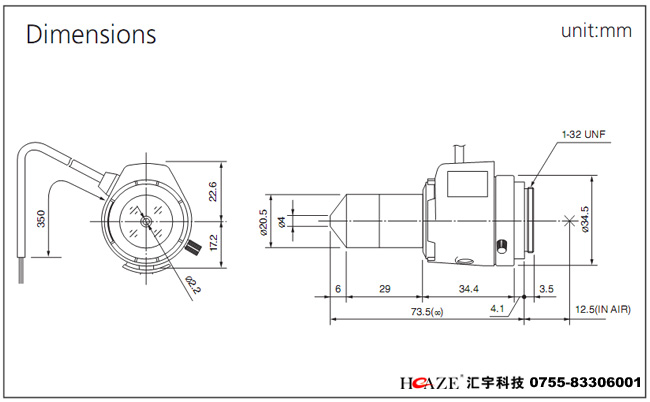

產(chǎn)品圖紙
|
|
||
